Your rear axle is the most-abused part on the kart. Every bit of power your motor makes and every ounce of grip your tires find gets funneled through that 1-1/4" bar and the handful of hubs, bearings, and cassettes clamped to it. Mid-season is when it shows — bent bars from curb hopping, notchy bearings full of clay dust, hub keyways starting to wallow out. This guide walks through the whole rear axle assembly so you know what you're running, what wears, and what to have on the bench before the next race.

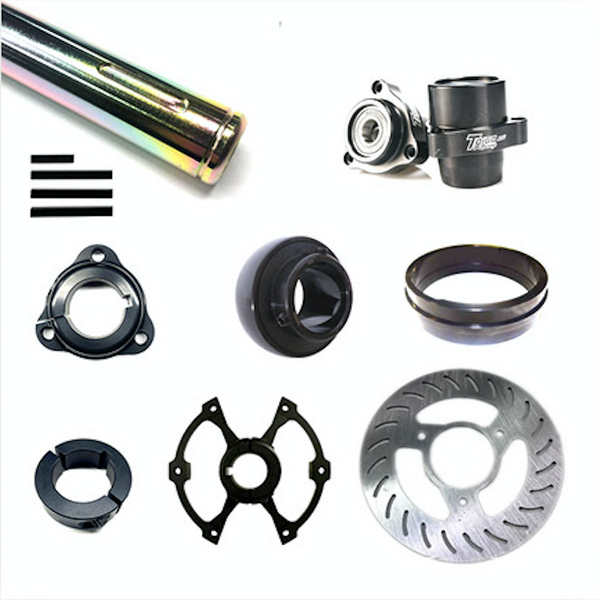

What lives on the rear axle
On an outlaw or flat kart, the rear axle is a "live" axle — both rear wheels are locked to a single solid bar, so they always turn at the same speed. There's no differential. That's why stagger (running a bigger tire on the right rear) matters so much, but that's a tire and rollout conversation. What we're covering here is the hardware that bar rides in and everything bolted to it:
- The axle — the tubular steel (or titanium) bar itself.
- Axle bearings and cassettes — what the bar spins in, mounted to the chassis.
- Wheel hubs — clamp the rear wheels to the axle.
- Sprocket hub — carries your rear sprocket (drive gear).
- Brake hub and rotor — where your rear brake lives.
- Key stock, lock collars, and snap rings — the small stuff that keeps it all located and clamped.
If you want the whole thing in one box, the Rear End Assembly bundles the axle, hubs, brake hub, rotor, sprocket hub, both bearings, lock collars, cassette spacers, key stock, and lock rings. It's the fastest way to freshen a tired rear end or build a spare.
Picking the right axle
Axle choice comes down to length, wall thickness, and material. Get length right first — it's set by your chassis and hub spacing. Most outlaw and flat karts run a 32" or 34" axle.
Wall thickness = flex and weight
A standard 3/16" wall zinc axle is the workhorse — stiff, durable, and cheap enough to replace when you tag a wall. If you're chasing weight and a little more flex to help the kart hook up on slick tracks, the .120" thin-wall axle drops roughly two and a half pounds off the same 32" bar. Thinner walls flex more, which can add rear grip on dry-slick nights but won't take abuse like the thick wall.
When titanium is worth it
Our titanium kart axle is the premium option — under 2 lb 11 oz, with pocketed key stock locations instead of one long milled channel (that keeps the bar stronger where it counts). Titanium isn't for everybody, but for a driver counting every ounce and running up front, it's a real advantage. For most weekend racers, a good zinc bar and fresh bearings will get you 95% of the way there.
Bearings and cassettes: where the grit gets in
Rear axle bearings take a beating. Dirt kart racing packs clay and dust into everything, and a dry, notchy bearing robs horsepower and can seize on you. If you spin the axle by hand and feel roughness or hear grinding, replace the bearing — don't wait.
The Wraith and Stealth chassis use a two-piece cassette that clamps the bearing to the chassis. Grab the correct side for your kart: Stealth right / Stealth left, or Wraith right / Wraith left. The cassette pills let you fine-tune axle height and chain alignment, and a fresh cassette sleeve keeps everything clamping square.
For the bearing itself, a ceramic rear axle bearing spins freer and shrugs off contamination better than a standard steel bearing — a worthwhile upgrade if you're fighting dust every weekend. Whatever you run, pull the bearings, clean them, and re-lube them as part of your maintenance routine.
Hubs, sprocket, and brake
Rear wheel hubs
The Rear Pro Ultralite Double Lock hub clamps the wheel to the axle with two pinch bolts instead of relying on a single point — more secure and lighter than old dual-mount hubs. Check your hub keyways every few races. If the key stock is starting to round the corners of the slot, the hub is worn and it's time to swap it before it lets go on track.
Sprocket hub and guard
Your rear sprocket rides on a 1-1/4" sprocket hub. Keep it clean and torqued — a loose sprocket hub eats chains and throws off your gearing. Add a sprocket guard to protect the gear (and yourself) from a thrown chain.
Brake hub
The rear brake hub carries your rotor out on the axle. If you're diving deeper on stopping power, we broke the whole system down in the outlaw kart brake system guide.
The small stuff that holds it together
Don't overlook the cheap parts — they're what actually keep your rear end located:
- Axle key stock — the steel keys that lock hubs and sprocket to the axle. Inspect these often; rounded or mushroomed keys mean slop.
- Lock collars — set axle side-to-side position and keep the bar from walking.
- Snap rings — retain bearings so nothing slides. Cheap insurance.
Mid-season rear axle checklist
We're in the thick of the summer track season, so before your next race night, run through this:
- Spin the axle by hand — feel for notchy or gritty bearings and replace if rough.
- Check the axle for bend or a flat spot from contact. A tweaked bar will never scale or handle right.
- Inspect every keyway and key — hubs, sprocket, brake. Any rounding, replace the key stock.
- Verify hub pinch bolts and sprocket hub hardware are torqued.
- Confirm lock collars and snap rings are tight and located.
- Clean and re-lube everything before it goes back together.
Ten minutes on the stand beats a DNF — or a wheel coming off at speed.
