Late August is when clutches start telling on themselves. You've got a full summer of heat cycles on that thing, the tracks are slick and dusty, and all of a sudden the kart feels lazy off the corner in a way you can't pin on the motor or the tires. Nine times out of ten nobody touched the clutch all year, because it's bolted behind a guard where you can't see it and it never quit outright — it just got slower a little at a time.
A two-disc clutch isn't a mystery box. It's a stack of plates, six springs, and a couple of lever weights, and every one of those pieces is something you can measure, adjust, or replace on a workbench in under an hour. Here's how the thing actually works, how to set stall speed on purpose instead of by accident, and how to tell when it's done.
What's actually in there
Working from the crank outward, a two-disc clutch is a back plate, a friction disc, a floater plate, a second friction disc, and a pressure plate — all of that living inside a vented basket, with a driver sprocket, a needle bearing, a washer and a bolt holding the whole works on the crankshaft.
The friction discs are the wear item. Everything else is hardware that either wears slowly or doesn't wear at all if you keep it clean. The 8-tab friction discs we stock fit any 3.5" clutch with an eight-slot basket, which covers most of what's running in outlaw and flat kart classes.
The floater plate matters more than people think
The floater sits between the two friction discs and it's what makes a two-disc a two-disc. It also sets your total stack height. A .065" floater and a .085" floater are not interchangeable without rethinking the rest of your stack — if you swap one in without checking, you can end up with a clutch that either drags at idle or never fully locks up. Measure your stack, don't eyeball it.
The basket vents are doing real work
Heat is what kills clutch consistency. A clutch that's crisp in your heat race and mushy in the feature usually isn't worn out — it's just hot. Those slots in the basket are there to move air across the plates. Keep them clear. Packed mud in the vents on a wet night turns a vented basket into a plain one.
Setting stall speed: springs and lever weights
Stall speed is the RPM where the clutch stops slipping and starts driving. Too low and you bog off the corner. Too high and you're burning the discs up every lap and leaving the corner in a cloud of your own clutch. Two things set it.
Spring rate
The springs pull the levers back in and hold the clutch disengaged until engine RPM overcomes them. Heavier wire means it takes more RPM to break loose. We stock red springs at .090" and black springs at .085" — red is the common setup on a BP engine, black on an Rbox. The six-spring design is the whole point: you can run a full set, or mix, and change the character of engagement without buying a new clutch.
What you cannot do is set spring height by eye. Installed height is what determines the actual preload, and two springs that look identical can sit .010" apart in the clutch. That's the difference between a clutch that engages the same every corner and one that feels different every time. A clutch spring height gauge takes the guessing out of it, and it's the single most useful clutch tool you can own for the money.
Lever weight and position
The two-hole levers are what push the pressure plate in as RPM comes up. More weight out at the end of the lever, or the same weight moved to the outer hole, means more centrifugal force at a given RPM — which means it engages sooner. Less weight or the inner hole pushes stall speed up.
This is your fine adjustment. Once you've got a spring set that's in the neighborhood, moving a weight bolt and nut from one hole to the other is a five-minute change that you can actually feel on the racetrack. Change one thing at a time and write it down. A Bully 3D listing that specs "one bolt in the outer position, roughly 4000 RPM" gives you a sense of how much a single bolt is worth.
Which way do I go?
Rule of thumb: if you're bogging on corner exit and the motor won't come up on the pipe, you want it to engage later — heavier springs or move weight inboard. If you're spinning the tires off the corner and the motor screams before the kart goes anywhere, you want it engaging sooner — lighter springs or weight outboard.
Before you chase any of that with the clutch, though, make sure it isn't a gearing problem. Our gearing guide covers sprocket and driver combinations by track, and a lot of what feels like a clutch complaint is really two teeth of gear.
The three-minute wear check
Pull the clutch guard, get the kart up on a kart lift, and look at three things.
1. Disc thickness
Mic the friction discs and compare against the manufacturer's wear limit. Discs wear evenly if the clutch is healthy, so if one is noticeably thinner than the other, something else in the stack is off — a warped floater, a tight basket slot, or a bolt that's been backing off.
2. Glazing and heat color
Blue or black glazing on the plates means that clutch got cooked. A glazed disc has a slick surface that won't grab consistently no matter how you set the springs. You can sometimes scuff a mild glaze and get through a night, but if it's blue, replace it and figure out why it got that hot.
3. Driver teeth and needle bearing
Hooked or pointed teeth on the clutch driver will eat a chain fast, and a chain that's already stretched will eat the driver right back. Check both together — our chain guide walks through #35 sizing and stretch. Then spin the needle bearing with a finger. Any grit or notchiness and it goes in the trash. It's a twelve-dollar part that will take a crankshaft with it if you let it seize.
Putting it back together
Clean everything in solvent first — a clutch full of dirt won't stall consistently no matter what springs are in it. Grab a rag and something from the cleaners shelf and get the plates and basket genuinely clean, not just wiped off.
On reassembly: fresh clutch key, correct shims so the driver lines up with the axle sprocket, and a proper clutch mounting kit with a new lock washer. Sight down the chain run before you button it up — a misaligned driver will chew a chain and a sprocket in one night and you'll blame the chain.
If you're running an inboard driver setup, the Bully 10-tooth inboard conversion has been one of our steadiest sellers for a reason: it pulls the chain line in and it fits most two-prong baskets.
When it's easier to just replace it

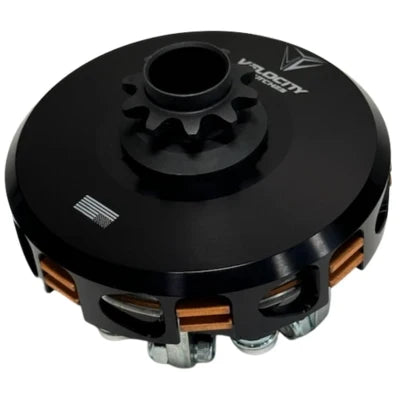

There's a point where you're rebuilding a clutch that owes you nothing. If you're into it for two sets of discs, a floater, levers and a driver, you're most of the way to a fresh unit. The Velocity 2-disc and the Bully 2-disc 6-spring are both built around the adjustable six-spring setup, so nothing you learned tuning the old one goes to waste. If you want help sorting out which one fits your program, our Velocity buyer guide breaks down the plate options.
And if you'd rather not do it at all, we do clutch setup work in the shop. Drop it off, tell us the track and the class, and we'll set it.
Do it now, not in October
There's still season left. A clutch that's slipping half a tenth every corner costs you more over a night than any single part you could bolt on, and it's the cheapest thing on the kart to fix. Pull the guard this week and look at it.
