Product Details
THIS DOES NOT INCLUDE THE TOP WASHER BOX.
IF YOU HAVE THE TOP WASHER BOX YOU CAN ADD THIS STAND AND MOTOR SO YOU DON'T HAVE TO USE A DRILL.
- All aluminum construction
- Includes Stand and Motor
- Features a heating probe and thermostat to warm the water
- Has an easy on/off hub for attaching the tire – no nuts involved!
- Built-in drain plug for easy removal of water
- Has a double receptacle and switch for the heating probe
Instructions for motor stand install
- Position the washer on the stand. Make sure the washer is flush with the front edge and the right side of the stand.
- Mark and drill the mounting holes. Once the washer is positioned correctly, mark the mounting holes in the bottom of the stand, then drill the holes.
- Bolt the washer to the stand. Apply a small amount of silicone to the bolts before tightening them down. This will help prevent water from leaking through the mounting holes.

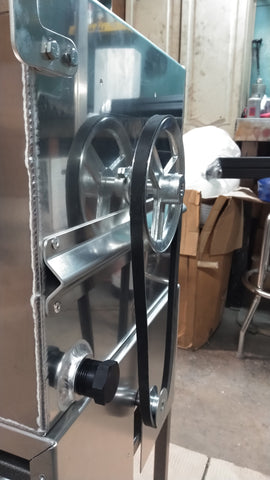

- Install the pulley and belt.
- Adjust the motor to tighten the belt. Move the motor as needed until the belt has the proper tension, then tighten the motor mounting bolts.
- Mount the pulley cover. Center the cover over the pulleys and belt, making sure it is evenly spaced on the top, bottom, left, and right sides.
- Secure the pulley cover once it is centered and has enough clearance around the pulleys and belt.
