Product Details

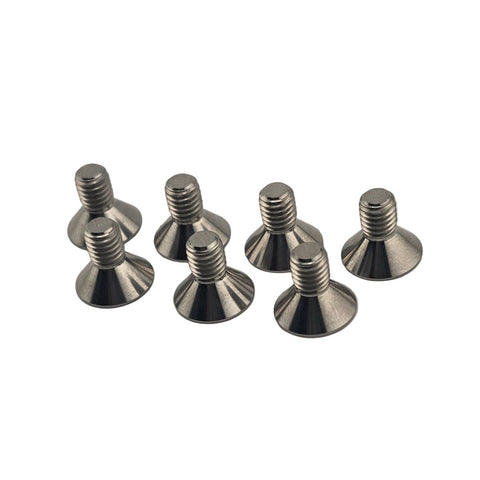

Replacement Grade 5 titanium bolt that mounts the drive plate to the clutch drive hub on Bully style racing clutches for outlaw kart, junior sprint, quarter midget and micro sprint karts. The tapered countersunk head sits flush in the plate and takes a 1/8 in allen key.
These bolts clamp the plate to the hub through every engagement cycle, so they see constant shock loading and heat. Grade 5 titanium holds that clamp load at 1.2 g per bolt and will not corrode into the hub threads between race weekends.
- Material: Grade 5 titanium
- Thread: #10-32
- Head: tapered countersunk, 1/8 in allen drive
- Weight: single 1.2 g, four pack 4.6 g, seven pack 8 g
- Sold individually, in packs of four for a one disk clutch, or packs of seven for two and three disk clutches
Note: if you have to replace these bolts you will most likely need an extractor, or have to drill them out of the clutch hub. Drive plate, drive hub and clutch assembly are sold separately.
