Product Details

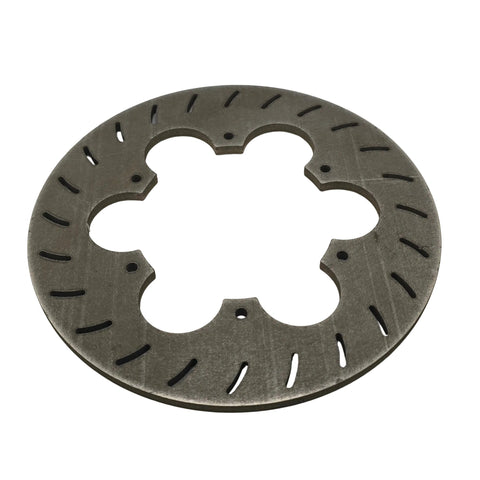

This grade 5 titanium rear brake rotor is made to bolt up to standard gear and brake carriers on 600 micro sprints and three quarter midgets (TQ).
Rotating weight at the rear axle is some of the most expensive weight on the car. Swapping to titanium takes mass off the driveline, frees up acceleration and gives the brakes less inertia to kill on entry. Titanium also resists the corrosion that pits steel rotors between race weekends.
At .290 inch thick this rotor is heavier-duty than a standard plate rotor, which helps resist bending in the event of an accident and warping under extreme braking heat.
- Material: grade 5 titanium
- Outer diameter: 9.25 in
- Thickness: .290 in
- Drilled for 1/4 in bolts
- Weight: 1.72 lbs / 780 g
Fits standard 600 and TQ gear/brake carriers. Holes are drilled for 1/4 inch bolts, but the rotor can be carefully drilled out for 5/16 inch bolts if your carrier requires it. Wilwood BP-40 brake pads are recommended with this rotor. Sold individually; rotor bolts and brake pads sold separately.
